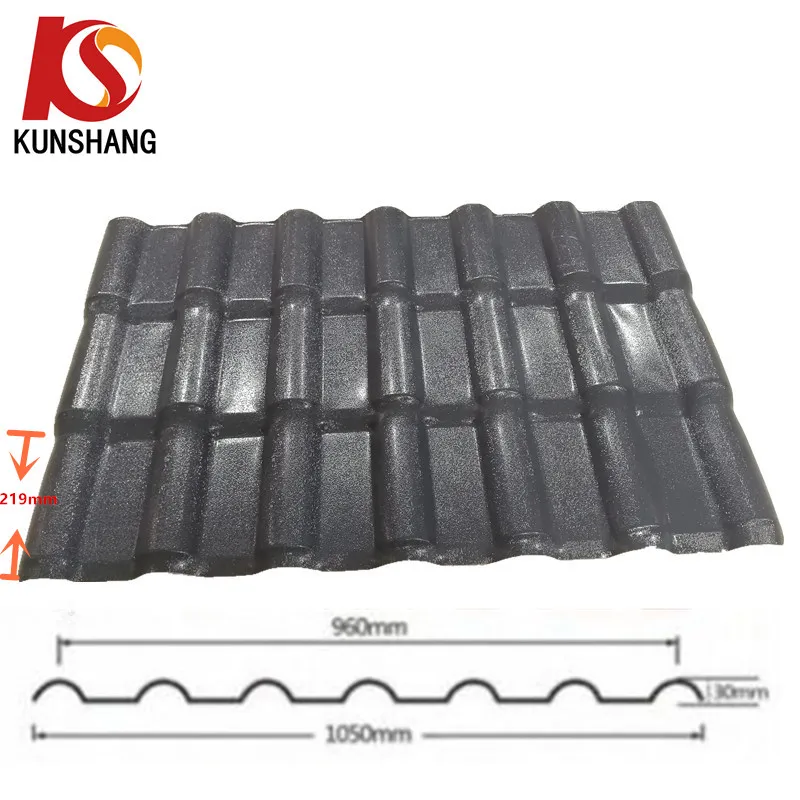

| Tpye | Durable Sythentic Resin Spanish Style pvc Roofing Tiles |
| thickness | 2.0mm-3.0mm |
| Total Width | 1050mm, 880mm, 720mm |
| Effective Width | 960mm, 790mm, 630mm |
| Length | The max length in 20ft container is 5.694m. |
| The max length in 40ft container is 11.826m. |
| Packaing | Full container:Main tiles are nude packing. The accessories are packed with packing paper. |
| LCL container:By pallets or by wooden box or by buyer's request,based on the length of tile. |
Waterproof corrugated Spanish Resin PVC Roofing Tile advantages:
1.save cost; 2. Loading bearing: It can load 150 kg per square meter evenly; 3. Light weight: 5-6.0kg/square meter; 4. Water resistance: 100%; 5. Fire resistance: Self-extinguish off fire; 6. Anti corrosion; 7. Impact resistance and low temperature resistance; 8. Sound and heat insulation; 9. Small Thermal expansivity; 10. Environmental protection and energy conservation; 11. Easy to install Fireproof Spanish plastic PVC Roofing Sheet/Tiles Technical data: | Item | Content | Result | Standard |
| Environment | Pollution or environment friendly | No asbestos and Environment friendly Recycling material | GB6566-2001, A standard good for Environment |
| Heat distortion temperature | Under 70.0°C | No change | GB/T1634-2004 |
| Vicat softening temperature | Under 75.2°C | No Softening | GB/T1633-2000 |
| Hard to burn | B1 Grade | Oxygen index: 32.4 | GB/T2406-1993 |
| Vertical Burning | FV-0 | FV-0 | GB/T2408-1996 |
| Horizontal Burning | FH-1 | FH-1 | GB/T2408-1996 |
| Impact Resistance | No crack | 0/10 | GB/T8814-2004 |
| Density | 1.75-1.95 | 1.778 | GB/T1033-1986 |
| Corrosion-resistant | Acid (HCL,H2SO4,HNO3)5% | No change | QB/T3801-1999 |
| Alkaline(NaOH)5% | No change | QB/T3801-1999 |
Detailed Photos
Spanish PVC roofing/roof tile detailed pictures:

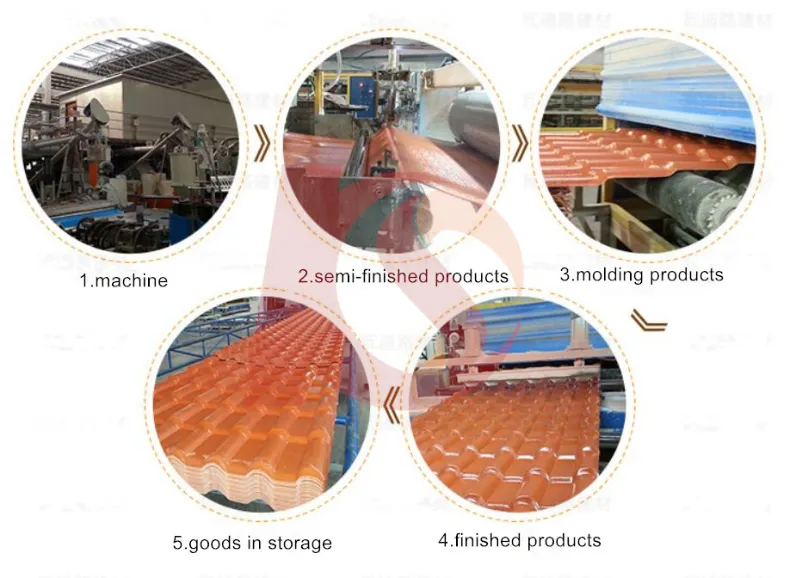

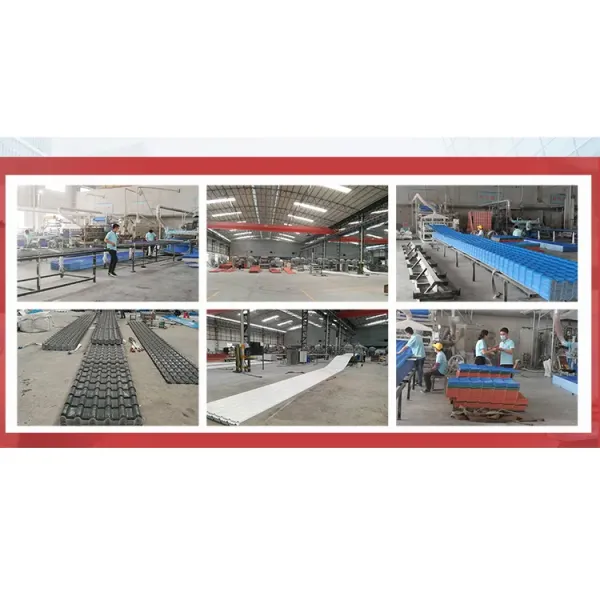

Waterproof corrugated Spanish Resin PVC Roofing Tile PVC Producing Line: :
Installation Instructions
Products Cases
4 Layer Spanish PVC Roof tile projects:4PVC:
Packaging & Shipping
1.Normally, our FOB price base on 1 container as the roof tile is nude packing.
Whatever 20ft container or 40ft container, both of them are limited 28tons.
1> 20ft container, because of volum limited, the 20ft container could load around 27-28 tons with 5.8m length with full container.
2> 40ft container, because of weight limited, the 40ft container could load around 27-28 tons with 11.8m length, but the volum is half container.
2.If you need the order quantity less than one container,we can pack and ship by pallet or wooden box,based the different length.
Why choose us: - Any inquires will be replied within 24 hours .
- We are professional supplier and exported this kind of products more than 5 years.
- Any your idea on the packing we can help you to design and put into production.
- High quality , reasonable and competitive price , fast lead time .
- All products will have been strictly quality checked in house before packing .
- All products will be well packed before shipping.Sample order prepared,about 7-10 days for delivery productions.
FAQ:
1. What machine do you use to cut ? Using portable cutting machine. 2. What machine do you use to install the screws? Portable electric drill. 3. How to install ? Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave. 4. What is the temerature limited of the environment that your roof can be used? Temperature range: From Minus 35 degree to 72 degree 5. What color can you produce? White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample. 6. Does you charge for the samples? According to our company policy, we just sent free samples to customers while the customers pay for the freight fees. 7. Can you produce according to customers'design? Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould fees,after certain quantity, the open mould fees will be returned as product.
